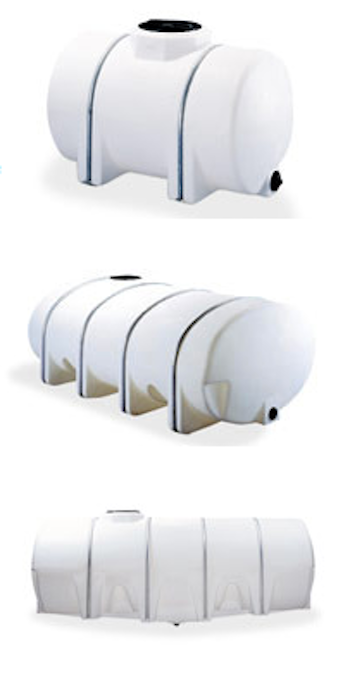

Norwesco Horizontal, Elliptical & Drainable Tanks
With the broadest leg tank line available, Norwesco manufactures a size that will fit your needs. Used primarily for transport and nursing applications, Norwesco's horizontal leg tanks feature molded-in legs that act as "baffles" to reduce sloshing and provide increased stability during transport. Custom fabricated Norwesco bands are used to support the tank and ensure that it retains its shape and integrity. The bands are galvanized for added corrosion protection.
Norwesco elliptical tanks are designed to provide the greatest capacity with the lowest center of gravity, making it the best design available for transporting larger volumes. Norwesco elliptical leg tanks feature molded-in legs to reduce sloshing. All Norwesco elliptical tanks require full length bottom support as well as support bands. Ladders and skids are also available.
When complete drainage is necessary, these are the tanks of choice. They are designed primarily for use on fertilizer and chemical nurse trailers. All Norwesco drainable leg tanks require full length bottom support as well as support bands.
Return to Horizontal Tanks page
Horizontal Leg Tanks
|
Premium Weight Part Number |
Heavy Weight Part Number |
Gallons |
Diameter |
Height |
Length |
Fill Opening |
Outlet/Drain Size |
|
N/A |
35 |
20" |
23" |
29" |
5" |
3/4" |
|
|
N/A |
55 |
23" |
26" |
33" |
5" |
3/4" |
|
|
N/A |
65 |
23" |
26" |
43" |
5" |
3/4" |
|
|
N/A |
125 |
32" |
35" |
41" |
8" |
2" |
|
|
N/A |
225 |
38" |
41" |
49" |
8" |
2" |
|
|
N/A |
325 |
38" |
43" |
68" |
16" |
2" |
|
|
N/A |
330 |
38" |
40" |
74" |
5" |
2" |
|
|
N/A |
425 |
49" |
54" |
60" |
16" |
2" |
|
|
525 |
49" |
54" |
71" |
16" |
2" |
||
|
725 |
49" |
54" |
101" |
16" |
2" |
||
|
N/A |
925 |
62" |
65" |
80" |
16" |
2" |
|
|
N/A |
925 |
62" |
69" |
80" |
16" |
2" |
|
|
1025 |
49" |
54" |
139" |
16" |
2" |
||
|
1325 |
66" |
70" |
99" |
16" |
2" |
||
|
1625 |
63" |
68" |
139" |
16" |
2" |
||
|
5025 |
92" |
96" |
190" |
16"* |
3"/2" |
*Require full length support and bands
**16" hinged lid, Norwesco part #62532
Horizontal Leg Tank Stand & Bands
Horizontal Leg Tank Poly Stand
|
Part Number |
Gallons |
Width |
Height |
Length |
|
42854 |
225 |
38" |
41" |
45" |
Horizontal Leg Tank Bands
|
Part Number |
Gallons |
A |
B |
C |
No. of Bands |
|
60520 |
35 |
18 1/2" |
18 1/2" |
21 3/8" |
2 optional |
|
61745 |
55 |
22" |
22" |
26 1/2" |
2 optional |
|
61745 |
65 |
22" |
22" |
26 1/2" |
2 optional |
|
61744 |
125 |
30 3/4" |
30 1/2" |
35" |
2 optional |
|
60478 |
225 |
36 1/2" |
36" |
42" |
2 optional |
|
60478 |
325 |
36 1/2" |
36" |
42" |
2 optional |
|
60478 |
330 |
36 1/2" |
36" |
42" |
2 optional |
|
60057 |
425 |
47 3/4" |
46 1/4" |
52 1/4" |
2 optional |
|
60057 |
525 |
47 3/4" |
46 1/4" |
52 1/4" |
2 optional |
|
60057 |
725 |
47 3/4" |
46 1/4" |
52 1/4" |
3 required |
|
62852 |
925 |
61" |
60" |
66" |
2 required |
|
60057 |
1025 |
47 3/4" |
46 1/4" |
52 1/4" |
4 required |
|
63282 |
1325 |
64" |
64" |
70" |
3 required |
|
60079 |
1625 |
61" |
60 3/4" |
67 1/4" |
4 required |
|
63284 |
5025 |
89 3/4" |
89 1/2" |
93 7/8" |
5 required |
Elliptical Leg Tanks
|
Premium Weight Part Number |
Heavy Weight Part Number |
Gallons |
Width |
Height |
Length |
Fill Opening |
Outlet/ |
|
N/A |
335 |
48" |
33" |
71" |
16" |
2" |
|
|
N/A |
535 |
57" |
39" |
80" |
16" |
2" |
|
|
N/A |
1035 |
79" |
54" |
89" |
16" |
2" |
|
|
N/A |
1235 |
66" |
53" |
128" |
16" |
2" |
|
|
1335 |
66" |
55" |
126" |
16" |
2" |
||
|
1635 |
71" |
58" |
142" |
16" |
2" |
||
|
2035 |
84" |
56" |
142" |
16" |
2" |
||
|
2635 |
90" |
72" |
140" |
16" |
3"/2" |
||
|
3135 |
88" |
80" |
150" |
16" |
3"/2" |
||
|
4035 |
92" |
75" |
192" |
16"* |
3"/2" |
*16" hinged lid, Norwesco part number 62532
Elliptical Leg Tank Ladders & Bands
Elliptical Leg Tank Ladders
|
Part Number |
Description |
Gallons |
|
60354 |
Ladder (optional) |
2635 & 3135 |
|
63033 |
Ladder (optional) |
4035 |
|
62301 |
*Adaptor Kit for Ladder |
3135 |
*Kit is required when using a ladder on the 3135 gallon tank
Elliptical Leg Tank Bands
|
Part Number |
Gallons |
A |
B |
C |
No. of Bands |
|
63546 |
335 |
29" |
46 1/2" |
52 1/2" |
2 required |
|
63547 |
535 |
35" |
55 1/2" |
61 1/2" |
2 required |
|
60325 |
1035 |
47 1/4" |
77" |
83" |
3 required |
|
60477 |
1235 |
47 3/4" |
64 3/4" |
70 3/4" |
4 required |
|
63642 |
1335 |
53" |
65" |
71" |
3 required |
|
60586 |
1635 |
51" |
68" |
74" |
4 required |
|
62079 |
2035 |
51 1/4" |
81 1/2" |
86 3/4" |
4 required |
|
60353 |
2635 |
65 1/4" |
87 1/2" |
94" |
4 required |
|
62097 |
3135 |
75 1/4" |
85 1/2" |
92" |
4 required |
|
63620 |
3135* |
74 1/4" |
85 1/2" |
92" |
4 required |
|
62832 |
4035 |
70 1/4" |
89 1/2" |
96" |
4 required |
*If shipping from CA or UT and manufactured after 12/1/07 or shipping from MN,OK or TX and manufactured after 10/1/08
Elliptical Tanks
|
Premium Weight Part Number |
Gallons |
Width |
Height Including Sump |
Length |
Sump Depth |
Fill Opening |
Outlet/ |
|
200 |
40" |
30" |
66" |
3/4" |
8" |
1 1/4" |
|
|
300 |
48" |
36" |
70" |
3" |
16" |
1 1/4" |
|
|
500 |
57" |
44" |
82" |
2"/5" |
16" |
1 1/4" |
|
|
750 |
69" |
48" |
88" |
3" |
16" |
2" |
|
|
1000 |
78" |
55" |
90" |
3" |
16" |
2" |
|
|
1600* |
78" |
54" |
138" |
2 1/2" |
16" |
2" |
|
|
2550** |
88" |
82" |
142" |
9" |
16" |
3" |
*Includes one stainless steel baffle
**Requires support bands
Elliptical Tank Skids
|
Part Number |
Gallons |
A |
B |
C |
D |
E |
F |
|
63015 |
200 |
4" |
24" |
52" |
57" |
2" x 68" |
8" |
|
63016 |
300 |
4" |
34" |
46 1/4" |
54 1/4" |
2" x 76" |
8" |
|
63018 |
500 |
4" |
34" |
60" |
68" |
2" x 94" |
8" |
|
60371 |
750 |
4" |
38" |
69 1/2" |
78" |
2" x 112" |
8" |
|
60372 |
1000 |
4" |
46" |
60" |
72" |
2" x 130" |
8" |
|
67456 |
2550* |
- |
- |
- |
- |
- |
8" |
*Band only, no skid
Drainable Leg Tanks
|
Premium |
Heavy |
Gallons |
Width |
Height |
Length |
Fill Opening |
Outlet/Drain |
|
710 |
47" |
57" |
104" |
16" |
2" |
||
|
1010 |
47" |
58" |
140" |
16" |
2" |
||
|
1310 |
66" |
75" |
99" |
16" |
- |
||
|
1315 |
66" |
60" |
126" |
16" |
- |
||
|
1610 |
69" |
63" |
140" |
16" |
- |
||
|
2610 |
90" |
79" |
140" |
16" |
- |
||
|
3210 |
92" |
75" |
178" |
16" |
- |
Support Bands Available
710, 1010 and 1310 gallon tanks are horizontal shaped, the rest are elliptical
2610 and 3210 gallon tanks have a hinged lid
Tank dimensions and capacities may vary slightly and are subject to change without notice.
