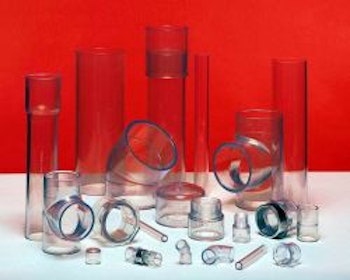

Clear PVC Piping
Clear rigid PVC piping provides a versatile, cost-effective alternative for many piping applications, particularly those where visual monitoring of processes is important. The benefits of rigid PVC piping are well recognized: exceptional corrosion resistance; smooth interior walls for unimpeded flow and reduced sediment buildup; non-contaminating for purity applications; fast, reliable solvent-welded connections; good pressure-bearing capability; and ease of handling and installation, to name a few. Clear PVC is routinely used as dual-containment piping for high purity piping runs where quick identification of primary tubing and visual leak detection is critical. Other applications include chemical processing, electroplating, medical/hospital use, laboratory applications, beverage processing and cosmetics.
Key Properties
- Fully Compatible with Standard PVC Pipe, Fittings and Valves
- Corrosion Resistant
- Non-Conductive
- Wide Range of Chemical Resistance
- Lightweight, Easy to Handle and Install
Standard Pipe and Fittings Sizes
Pipe: 1/4" - 12" IPS Schedule 40 & 80
Fittings: 1/4" - 8" IPS Schedule 40
For UV Resistant Clear PVC Piping click Here
Pipe Dimensions and Pressure Ratings
Nominal Pipe Size (in.) | Outside Diameter | Average I.D. | Minimum Wall | Maximum W.P. PSI |
1/4" (Schedule 40) | 0.540 | 0.344 | 0.088 | 390 |
3/8" (Schedule 40) | 0.675 | 0.473 | 0.091 | 310 |
1/2" (Schedule 40) | 0.840 | 0.602 | 0.109 | 300 |
3/4" (Schedule 40) | 1.050 | 0.804 | 0.113 | 240 |
1" (Schedule 40) | 1.315 | 1.029 | 0.133 | 220 |
1-1/4" (Schedule 40) | 1.660 | 1.360 | 0.140 | 180 |
1-1/2" (Schedule 40) | 1.900 | 1.590 | 0.145 | 170 |
2" (Schedule 40) | 2.375 | 2.047 | 0.154 | 140 |
2-1/2" (Schedule 40) | 2.875 | 2.445 | 0.203 | 150 |
3" (Schedule 40) | 3.500 | 3.042 | 0.216 | 130 |
3-1/2" (Schedule 40) | 4.000 | 3.521 | 0.226 | 120 |
4" (Schedule 40) | 4.500 | 3.998 | 0.237 | 110 |
6" (Schedule 40) | 6.625 | 6.031 | 0.280 | 90 |
6" x 1/8" (Schedule 40) | 6.625 | 6.335 | 0.110 | 45 |
8" (Schedule 40) | 8.625 | 7.942 | 0.322 | 80 |
10" (Schedule 40) | 10.750 | 9.976 | 0.365 | 70 |
12" (Schedule 40) | 12.750 | 11.889 | 0.406 | 70 |
1/4" (Schedule 80) | 0.540 | 0.282 | 0.119 | 570 |
3/8" (Schedule 80) | 0.675 | 0.403 | 0.126 | 570 |
1/2" (Schedule 80) | 0.840 | 0.526 | 0.147 | 420 |
3/4" (Schedule 80) | 1.050 | 0.722 | 0.154 | 340 |
1" (Schedule 80) | 1.315 | 0.936 | 0.179 | 320 |
1-1/4" (Schedule 80) | 1.660 | 1.255 | 0.191 | 260 |
1-1/2" (Schedule 80) | 1.900 | 1.476 | 0.200 | 240 |
2" (Schedule 80) | 2.375 | 1.913 | 0.218 | 200 |
2-1/2" (Schedule 80) | 2.875 | 2.290 | 0.276 | 210 |
3" (Schedule 80) | 3.500 | 2.864 | 0.300 | 190 |
3-1/2" (Schedule 80) | 4.000 | N/A | N/A | N/A |
4" (Schedule 80) | 4.500 | 3.786 | 0.337 | 160 |
6" (Schedule 80) | 6.625 | 5.709 | 0.432 | 140 |
6" x 1/8" (Schedule 80) | 6.625 | N/A | N/A | N/A |
8" (Schedule 80) | 8.625 | N/A | N/A | N/A |
10" (Schedule 80) | 10.750 | N/A | N/A | N/A |
12" (Schedule 80) | 12.750 | N/A | N/A | N/A |
| |
