Chem-Tainer Horizontal & Elliptical Tanks

Manufactured from linear polyethylene in one piece, seamless construction, this tank series is designed for storage and non-DOT regulated transport applications. They are UV stabilized for outdoor usage and come standard with a Vented Manway. Non-Vented and Hinged Manways are also available. Non-Vented manways are recommended for applications where chemical fumes should be vented away from the tank area.

Return to Horizontal Tanks page

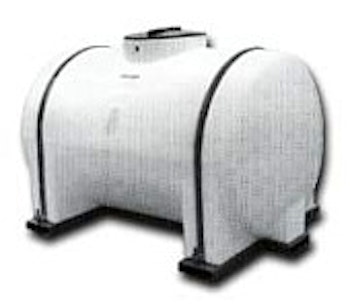

Horizontal Leg Tanks

LC Series - Commercial Series - Designed to handle contents that have a maximum specific gravity of 1.5 at 73° F. Excellent impact and chemical resistance. Resin complies with U.S. Food and Drug Administration regulation 21 CFR 177.1520 (c) 3.1 and 3.2. Translucent for visible content level. Molded in calibrations. Anti-surge baffles molded in on tanks - 525 gallons through 1625 gallons. Most sizes are available with steel platforms and straps for mounting on vehicles.

LA Series - Industrial Series - Designed to handle contents that have a maximum specific gravity of 1.9 at 73° F. Excellent impact and chemical resistance. Resin complies with U.S. Food and Drug Administration regulation 21 CFR 177.1520 (c) 3.1 and 3.2. Translucent for visible content level. Molded in calibrations. Anti-surge baffles molded in on tanks - 525 gallons through 1625 gallons. Most sizes are available with steel platforms and straps for mounting on vehicles.

Notes: The degree of translucency varies with wall thickness and tank color. An increase in liquid temperature will substantially decrease the specific gravity rating.

The part number below shows if the tank is available in LC, LA or both. (Example: TA1634LC = LC series, TC2218LA = LA series, TA1834LC/LA = Both)

Part Number

Gallons

Diameter

Length

Manway

TA1430LC

15

14"

30"

5"

TA1634LC

25

16"

34"

5"

TC2218LA

30

22"

18"

4"

TA1834LC/LA

35

18"

34"

5"

TN2029LA

35

20"

29"

5"

TC2248LA

65

22"

48"

5"

TN2343LA

65

23"

43"

5"

TA2439LC/LA

65

24"

39"

5"

TC2948LA

125

29"

48"

8"

TA3240LC/LA

125

32"

40"

8"

TN3241LA

125

32"

41"

8"

TA3251LC/LA

165

32"

51"

8"

TC3842LC/LA

200

38"

42"

8"

TC3845LA

200

38"

45"

8"

TA3852LC/LA

225

38"

52"

8"

TN3849LC

225

38"

49"

8"

TC3866LA

300

38"

66"

16"

TC4472LC/LA

300

44"

72"

16"

TN3868LC

325

38"

68"

16"

TA4456LC/LA

335

44"

56"

16"

TN4971LC/LA

525

49"

71"

16"

TA4878LC/LA

535

48"

78"

16"

TC5476LC/LA

550

54"

76"

16"

TN725XLC/LA

725

49"

101"

16"

TA735XLC/LA

735

48"

103"

16"

TA6281LC/LA

925

62"

81"

16"

TN1025LC/LA

1025

49"

139"

18"

TA1065LC/LA

1065

58"

106"

16"

TA1300LC/LA

1300

62"

114"

16"

Tanks are available with or without sump.

Elliptical Tanks


MC Series - Commercial Series - Designed to handle contents that have a maximum specific gravity of 1.5 at 73° F. Excellent chemical resistance. Resin complies with U.S. Food and Drug Administration regulation 21 CFR 177.1520 (c) 3.1 and 3.2. Translucent for visible content level. Molded in calibrations. Anti-surge baffles molded in on tanks - 1000 gallons through 2625 gallons.

MA Series - Industrial Series - Designed to handle contents that have a maximum specific gravity of 1.9 at 73° F. Excellent chemical resistance. Resin complies with U.S. Food and Drug Administration regulation 21 CFR 177.1520 (c) 3.1 and 3.2. Translucent for visible content level. Molded in calibrations. Anti-surge baffles molded in on tanks - 1000 gallons through 2625 gallons.

Notes: The degree of translucency varies with wall thickness and tank color. An increase in liquid temperature will substantially decrease the specific gravity rating.

The part number below shows if the tank is available in MC, or both MC and MA.

(Example: TN300XMC = MC series, TA200XMC/MA = Both)

Part Number

Gallons Length Width Height

Manway

TA200XMC/MA*

200

66"

41"

26"

8"

TA300XMC/MA*

300

70"

48"

30"

8"

TN300XMC

300

70"

48"

30"

8"

TA400XMC/MA*

400

70"

57"

36"

8"

TC500XMC/MA

500

73"

53"

42"

16"

TA500XMC/MA*

500

82"

57"

36"

8"

TN500XMC**

500

82"

57"

36"

8"

TA750XMC/MA*

750

89"

69"

42"

16"

TN750XMC**

750

88"

69"

42"

16"

TC1000MC/MA

1000

145"

53"

45"

16"

TA1000MC/MA*

1000

90"

78"

49"

16"

TN1035MC

1035

89"

79"

53"

16"

TA1035MC/MA

1035

90"

78"

52"

16"

TN1235MC

1235

128"

65"

52"

16"

TA1600MC/MA*

1600

138"

78"

49"

16"

TN1635MC/MA

1635

142"

71"

57"

16"

TN2035MC/MA

2035

142"

84"

55"

16"

TA2350MC/MA

2350

146"

88"

63"

16"

TN2635MC/MA

2635

140"

90"

71"

16"

TN3135MC/MA

3135

151"

88"

76"

16"

TN4035MC/MA

4035

192"

92"

77"

16"

* Non-Legged
** Non-Legged and include support bands
Tanks are available with or without sump.
