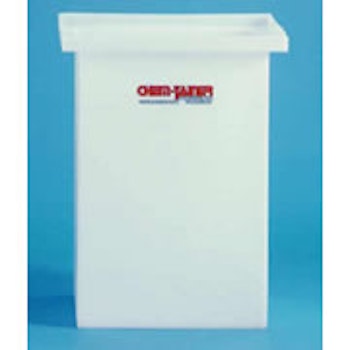

Chem-Tainer Rectangular/Square Flat Bottom Tanks

Rectangular/Square flat bottom tanks are designed with heavy walls for long service under severe conditions. Straight sides allow maximum use of space. They are used in dozens of industries for plating, processing and storage. Rectangular/Square tanks with a height greater than 18" must be supported.

Return to Chem-Tainer Open Top Tanks page




A Series - Polyethylene (PE) - One piece molded-no seams to leak. Excellent impact and chemical resistance. Resin complies with U.S. Food and Drug Administration regulation 177.1520 (c) 3.1 and 3.2. Translucent for visible contents level. Operating temperatures up to 140° F.

B Series - Polypropylene (PP) - One piece molded-no seams to leak. Excellent impact and chemical resistance. Resin complies with U.S. Food and Drug Administration regulation 177.1520 (c) 3.1 and 3.2. Translucent for visible contents level. Operating temperatures up to 212° F. Not recommended for impact or low temperature applications

C Series - FRP Encased Polyethylene (PE) - Designed to completely support our regtangular tanks. No maintenance.

D Series - FRP Encased Polypropylene (PP) - Designed to completely support our regtangular tanks. No maintenance.

Part Number

Gallons

Size*

A Series

B Series

C Series

D Series

R12X6X6A/C/D

1

6 x 12 x 6

X

X

X

R080808A/C/D

2

8 x 8 x 8

X

X

X

R12X612A/C/D

3

6 x 12 x 12

X

X

X

R161008A/C/D

5

10 x 16 x 8

X

X

X

R180418A/C/D

6

4 x 18 x 18

X

X

X

R141010A/C/D

6

10 x 14 x 10

X

X

X

R081812A/C/D

7

8 x 8 x 12

X

X

X

R121212A/B/C/D

7

12 x 12 x 12

X

X

X

X

R121809A/C/D

9

12 x 18 x 9

X

X

X

R240618A/B/C/D

11

6 x 24 x 18

X

X

X

X

R081818A/C/D

11

8 x 18 x 18

X

X

X

R121218A/C/D

11

12 x 12 x 18

X

X

X

R240430A/B/C/D

12

4 x 24 x 30

X

X

X

X

R121812A/C/D

12

12 x 18 x 12

X

X

X

R081824A/C/D

14

8 x 18 x 24

X

X

X

R121224A/B/C/D

14

12 x 12 x 24

X

X

X

X

R121815A/C/D

14

12 x 18 x 15

X

X

X

R122412A/C/D

15

12 x 24 x 12

X

X

X

R181812A/C/D

17

18 x 18 x 12

X

X

X

R121230A/B/C/D

18

12 x 12 x 30

X

X

X

X

R121818A/C/D

18

12 x 18 x 18

X

X

X

R141618A/C/D

19

14 x 16 x 18

X

X

X

R121236A

22

12 x 12 x 36

X

R122418A/C/D

22

12 x 24 x 18

X

X

X

R182412A/C/D

23

18 x 24 x 12

X

X

X

R121824A/C/D

24

12 x 18 x 24

X

X

X

R240830A/B/C/D

25

8 x 24 x 30

X

X

X

X

R181818A/B/C/D

25

18 x 18 x 18

X

X

X

X

R161624A/C/D

26

16 x 16 x 24

X

X

X

R123018A/C/D

27

12 x 30 x 18

X

X

X

R182415A/C/D

28

18 x 24 x 15

X

X

X

R183012A/C/D

28

18 x 30 x 12

X

X

X

R121830A/B/C/D

30

12 x 18 x 30

X

X

X

X

R122424A/B/C/D

30

12 x 24 x 24

X

X

X

X

R242412A/C/D

30

24 x 24 x 12

X

X

X

R181824A/C/D

34

18 x 18 x 24

X

X

X

R123024A/C/D

36

12 x 30 x 24

X

X

X

R122430A/B/C/D

37

12 x 24 x 30

X

X

X

X

R182418A/C/D

37

18 x 24 x 18

X

X

X

R243012A/B/C/D

37

24 x 30 x 12

X

X

X

X

R162424A/C/D

39

16 x 24 x 24

X

X

X

R181830A/B/C/D

40

18 x 18 x 30

X

X

X

X

R183018A/C/D

40

18 x 30 x 18

X

X

X

R241430A/B/C/D

42

14 x 24 x 30

X

X

X

X

R182424A/B/C/D

44

18 x 24 x 24

X

X

X

X

R123030A/C/D

45

12 x 30 x 30

X

X

X

R202020A/B/C/D

45

20 x 20 x 20

X

X

X

X

R242418A/B/C/D

45

24 x 24 x 18

X

X

X

X

R243612A/C/D

45

24 x 36 x 12

X

X

X

R303012A/C/D

46

30 x 30 x 12

X

X

X

R181836A/C/D

50

18 x 18 x 36

X

X

X

R183618A/B/C/D

50

18 x 36 x 18

X

X

X

X

R182430A/B/C/D

56

18 x 24 x 30

X

X

X

X

R183024A/B/C/D

56

18 x 30 x 24

X

X

X

X

R243018A/B/C/D

56

24 x 30 x 18

X

X

X

X

R153030A/B/C/D

58

15 x 30 x 30

X

X

X

X

R181842A/C

60

18 x 18 x 42

X

X

R242424A/B/C/D

60

24 x 24 x 24

X

X

X

X

R244812A/B/C

60

24 x 48 x 12

X

X

X

R203620A/B/C/D

62

20 x 36 x 20

X

X

X

X

R123636A/C/D

67

12 x 36 x 36

X

X

X

R182436A/B/C/D

67

18 x 24 x 36

X

X

X

X

R243618A/B/C/D

67

24 x 36 x 18

X

X

X

X

R183030A/B/C/D

70

18 x 30 x 30

X

X

X

X

R303018A/C/D

70

30 x 30 x 18

X

X

X

R242430A/B/C/D

75

24 x 24 x 30

X

X

X

X

R243024A/B/C/D

75

24 x 30 x 24

X

X

X

X

R182442A/C

78

18 x 24 x 42

X

X

R183036A/B/C/D

84

18 x 30 x 36

X

X

X

X

R182448A/C

90

18 x 24 x 48

X

X

R242436A/B/C/D

90

24 x 24 x 36

X

X

X

X

R243624A/B/C/D

90

24 x 36 x 24

X

X

X

X

R244818A/B/C/D

90

24 x 48 x 18

X

X

X

X

R363618A/C/D

92

36 x 36 x 18

X

X

X

R243030A/B/C/D

94

24 x 30 x 30

X

X

X

X

R303024A/C/D

94

30 x 30 x 24

X

X

X

R183042A/B/C/D

95

18 x 30 x 42

X

X

X

X

R183636A/B/C/D

100

18 x 36 x 36

X

X

X

X

R242442A/C

105

24 x 24 x 42

X

X

R243036A/B/C/D

112

24 x 30 x 36

X

X

X

X

R243630A/B/C/D

112

24 x 36 x 30

X

X

X

X

R366012A/C

112

36 x 60 x 12

X

X

R303030A/B/C/D

115

30 x 30 x 30

X

X

X

X

R242448A/C

120

24 x 24 x 48

X

X

R244824A/B/C/D

120

24 x 48 x 24

X

X

X

X

R243042A/C

130

24 x 30 x 42

X

X

R243636A/B/C

135

24 x 36 x 36

X

X

X

R264030A/C/D

135

26 x 40 x 30

X

X

X

R345218A/C/D

135

34 x 52 x 18

X

X

X

R303036A/B/C/D

138

30 x 30 x 36

X

X

X

X

R243048A/C

150

24 x 30 x 48

X

X

R244830A/B/C/D

150

24 x 48 x 30

X

X

X

X

R363630A/C/D

153

36 x 36 x 30

X

X

X

R243642A/C/D

157

24 x 36 x 42

X

X

X

R303042A/C

161

30 x 30 x 42

X

X

R366018A/C

168

36 x 60 x 18

X

X

R243648A/C

180

24 x 36 x 48

X

X

R244836A/B/C/D

180

24 x 48 x 36

X

X

X

X

R303048A/C

184

30 x 30 x 48

X

X

R363636A/B/C/D

185

36 x 36 x 36

X

X

X

X

R244842A/C

210

24 x 48 x 42

X

X

R404433A/C

210

40 x 44 x 33

X

X

R366024A/C

224

36 x 60 x 24

X

X

R246036A/C

225

24 x 60 x 36

X

X

R404530A/C

230

40 x 45 x 30

X

X

R363648A/C

260

36 x 36 x 48

X

X

R367224A/C

265

36 x 72 x 24

X

X

R244854A/C

270

24 x 48 x 54

X

X

R364836A/C

270

36 x 48 x 36

X

X

R303660A/C

280

30 x 36 x 60

X

X

R306036A/C

280

30 x 60 x 36

X

X

R454830A/C

280

45 x 48 x 30

X

X

R304848A/C

295

30 x 48 x 48

X

X

R363663A/C

350

36 x 36 x 63

X

X

R364848A/C

360

36 x 48 x 48

X

X

R426633A/C

390

42 x 66 x 33

X

X

R367236A/C

400

36 x 72 x 36

X

X

R484848A/C

470

48 x 48 x 48

X

X

R545442A/C

530

54 x 54 x 42

X

X

R367248A/C

540

36 x 72 x 48

X

X

R367260A/C

670

36 x 72 x 60

X

X

R727248A/C

1000

72 x 72 x 48

X

X

R727266A/C

1150

72 x 72 x 66

X

X

R848448A/C

1450

84 x 84 x 48

X

X

R848460A/C

1800

84 x 84 x 60

X

X


*Inside dimensions WxLxH.
