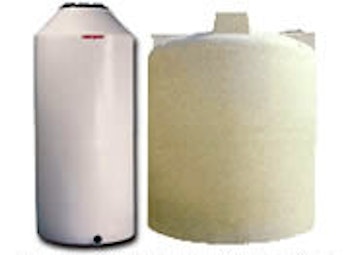

Chem-Tainer Vertical Bulk Storage Tanks
Manufactured from linear polyethylene in one piece, seamless construction, this tank series can be used indoors and it's UV stabilized for use outdoors. Flat bottom design provides for easy and cost efficient installation. Tanks come standard with a Vented Manway. Non-Vented and Hinged Manways are also available. Non-vented manways are recommended for applications where chemical fumes should be vented away from the tank area.
Available fittings: Bulkhead, Self-Aligning Bulkhead, Welded Half & Full Couplings, Needle Type Spigot, Drum Type Spigot, Flanged Inlets/Outlets, Sight Gauge, U-Vent, Siphon Tube, External Down Fill and Internal Down Pipe.
Tanks
IC - Commercial Series - Designed to handle contents that have a maximum specific gravity of 1.5 at 73° F. Translucent for visible content level.
IA - Industrial Series - Designed to handle contents that have a maximum specific gravity of 1.9 at 73° F. Translucent for visible content level. Standard color is natural white or blue.
Notes: The degree of translucency varies with wall thickness and tank color. An increase in liquid temperature will substantially decrease the specific gravity rating.
The part number below shows if the tank is available in IC, IA or both.
(Example: TA1628IC = IC series, TC1851IA = IA series, TC3172IA/IC = Both)
| Part Number | Gallons | Diameter | Height | Lid |
| 45 | 20" | 37" | 5" | |
| 55 | 20" | 38" | 8" | |
| 65 | 23" | 65" | 8" | |
| 75 | 23" | 49" | 8" | |
| 100 | 23" | 64" | 8" | |
| 130 | 23" | 76" | 8" | |
| 160 | 28" | 66" | 8" | |
| 165 | 31" | 58" | 8" | |
| 175 | 36" | 53" | 7" | |
| 200 | 31" | 72" | 8" | |
| 250 | 31" | 84" | 8" | |
| 250 | 35" | 68" | 8" | |
| 300 | 35" | 81" | 16" | |
| 300 | 35" | 87" | 16" | |
| 300 | 42" | 59" | 8" | |
| 300 | 45" | 60" | 16" | |
| 500 | 46" | 76" | 16" | |
| 500 | 47" | 72" | 16" | |
| 500 | 48" | 76" | 16" | |
| 500 | 63" | 53" | 16" | |
| 500 | 64" | 46" | 16" | |
| 550 | 45" | 94" | 16" | |
| 600 | 52" | 75" | 16" | |
| 650 | 56" | 70" | 16" | |
| 700 | 64" | 60" | 16" | |
| 750 | 46" | 119" | 16" | |
| 850 | 48" | 124" | 16" | |
| 1000 | 64" | 81" | 16" | |
| 1000 | 66" | 81" | 22" | |
| 1150 | 48" | 156" | 16" | |
| 1150 | 86" | 57" | 16" | |
| 1200 | 86" | 52" | 16" | |
| 1500 | 64" | 121" | 16" | |
| 1500 | 66" | 115" | 16" | |
| 1550 | 87" | 65" | 16" | |
| 1700 | 86" | 78" | 16" | |
| TC1701IA/IC | 1700 | 86" | 78" | 16" |
| TC2000IA/IC | 2000 | 64" | 144" | 16" |
| TC8787IA | 2100 | 87" | 87" | 16" |
| TC8699IA/IC | 2150 | 86" | 99" | 16" |
| TC8696IA | 2200 | 86" | 96" | 16" |
| TC9589IA/IC | 2500 | 95" | 89" | 16" |
| TC9592IC | 2500 | 95" | 92" | 16" |
| TC2700IA/IC | 2700 | 102" | 89" | 16" |
| TC9598IA/IC | 2800 | 95" | 98" | 16" |
| TC3000IA | 3000 | 95" | 107" | 16" |
| TC3100IA/IC | 3100 | 102" | 99" | 16" |
| TC3200IA/IC | 3200 | 95" | 112" | 16" |
| TC3600IA/IC | 3600 | 86" | 156" | 16" |
| TC4000IA/IC | 4000 | 95" | 140" | 16" |
| TC4001IA/IC | 4000 | 102" | 125" | 16" |
| TC4300IA/IC | 4300 | 120" | 105" | 16" |
| TC4500IA/IC | 4500 | 95" | 156" | 16" |
| TC2000IA/IC | 2000 | 64" | 144" | 16" |
| TC5000IC | 5000 | 102" | 152" | 16" |
| TC5600IA/IC | 5600 | 120" | 138" | 16" |
| TC6400IA/IC | 6400 | 120" | 150" | 16" |
| | ||||
