Den Hartog - Ace-Roto Mold Cone Bottom Tanks

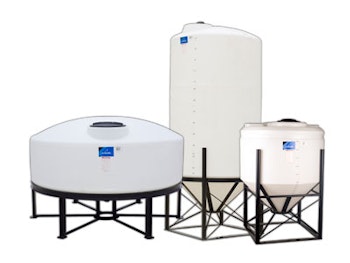

Cone Bottom Tanks are selected when a more complete drain out of stored chemical is required in indoor or outdoor installations. Tanks require stands to support the conical bottoms. Tanks are manufactured from medium- or high-density polyethylene with U.V. inhibitors. Tank walls are translucent for level viewing and equipped with gallon indicators.

View technical drawings by clicking on the part number below.

Tanks

Part Number	Capacity (Gallons)	Weight (lbs.)	Dimensions (In.)	Lid (In.)
CB0300-42 (Dome)	300	102	42 x 67	16"
CB0800-86 (Dome)	800	182	86 x 48	16"
CB1000-64 (Dome)	1000	252	64 x 98	16"
CB1000-90 (Dome)	1000	212	91 x 54	16"
CB1005-64 (Dome)	1005	222	64 x 86	16"
CB1200-90 (Dome)	1200	242	91 x 62	16"
CB1300-90 (Dome)	1300	262	91 x 65	16"
CB1490-64 (Dome)	1490	342	64 x 132	16"
CB1500-64 (Dome)	1500	332	64 x 122	16"
CB1600-90 (Dome)	1600	286	91 x 85	16"
CB1700-86 (Dome)	1700	286	86 x 85	16"
CB2000-96 (Dome)	2000	292	96 x 96	16"
CB2495-90 (Dome)	2495	487	91 x 119	16"
CB2500-90 (Dome)	2500	437	91 x 111	16"
CB2600-86 (Dome)	2600	502	86 x 146	16"
CB2600-90 (Dome)	2600	502	91 x 123	16"
CB3000-90 (Dome)	3000	552	91 x 128	16"
CB3000-96 (Dome)	3000	552	96 x 125	16"
CB4200-122 (Dome)	4200	1102	122 x 113	16"
CB4600-102 (Dome)	4600	1202	102 x 155	16"
CB4900-102 (Dome)	4900	1302	192 x 159	16"
CB6000-122 (Dome)	6000	1602	122 x 150	16"
CB6900-122 (Dome)	6900	1702	122 x 168	16"
CB8250-122 (Dome)	8250	2102	122 x 195	16"
CB0055-23 (Flat)	55	26	23 x 39	8"
CB0100-23 (Flat)	100	36	23 x 65	8"
CB0145-36 (Flat	145	52	36 x 43	8"
CB0150-36 (Flat)	150	63	36 x 51	12"
CB0200-36 (Flat)	200	58	36 x 55	8"
CB0200-42 (Flat)	200	77	42 x 55	12"
CBFD240-42 (Flat)	240	77	42 x 59	12"
CB0250-36 (Flat)	250	76	36 x 67	8"
CB0325-36 (Flat)	325	92	36 x 84	8"
CB0345-52 (Flat)	345	102	52 x 58	12"
CB0350-42 (Flat)	350	120	42 x 81	12"
CB0500-52 (Flat)	500	132	52 x 81	12"
CB0850-90 (Flat)	850	212	91 x 56	16"
CB1150-90 (Flat)	1150	242	91 x 67	16"
CB1550-90 (Flat)	1550	286	91 x 88	16"
CB2450-90 (Flat)	2450	437	91 x 114	16"
CB2550-90 (Flat)	2550	502	91 x 126	16"
VT5150-102 (Flat)	5150	1352	102 x 161	16"
VT6250-102 (Flat)	6250	1552	102 x 194	16"

Cone Bottom Stands

CB023-15ST

Technical Drawing
Capacity: 55 or 100 gal.
Weight: 37 lb.
Dimensions: 20 x 20 x 24 in.

CB036-15ST

Technical Drawing
Capacity: 145, 200, 250 or 325 gal
Weight: 84 lbs.
Dimensions: 31 x 31 x 26 in.

CB036-45ST

Technical Drawing
Capacity: 150 gal.
Weight: 63 lbs.
Dimensions: 64 x 61 in.

CB042-45ST

Technical Drawing
Capacity: 200, 300, 350 gal.
Weight: 82 lbs.
Dimensions: 41 x 34 in.

CBFD042-45ST

Technical Drawing
Capacity: 240 gal.
Weight: 82 lbs.
Dimensions: 42 x 34 in.

CB052-45ST

Technical Drawing
Capacity: 345 or 500 gal.
Weight: 174 lbs.
Dimensions: 55 x 41 in.

CB064-15ST

Technical Drawing
Capacity: 1005 or 1500 gal.
Weight: 320 lbs.
Dimensions: 64 x 25 in.

CB064-45ST

Technical Drawing
Capacity: 2600 gal.
Weight: 320 lbs.
Dimensions: 86 x 49 in.

CB086-15ST

Technical Drawing
Capacity: 800 or 1700 gal.
Weight: 360 lbs.
Dimensions: 86 x 23 in.

CB086-45ST

Technical Drawing
Capacity: 2600 gal.
Weight: 580 lbs.
Dimensions: 86 x 49 in.

CB090-15ST

Technical Drawing
Capacity: 850, 1000, 1150, 1200, 1300, 2450, 2500, 2975, 3000 gal.
Weight: 380 lbs.
Dimensions: 90 x 24 in.

CB090-30ST

Technical Drawing
Capacity: 1550, 1600, 2495, 2550 or 2600 gal.
Weight: 640 lbs.
Dimensions: 90 x 40 in.

CB096-30ST

Technical Drawing
Capacity: 1500, 2000 or 3000 gal.
Weight: 553 lbs.
Dimensions: 96 x 38 in.

CB102-15ST

Technical Drawing
Capacity: 4600 or 4900 gal.
Weight: 640 lbs.
Dimensions: 102 x 25 in.

CB122-15ST

Technical Drawing
Capacity: 4200, 6000, 6900 or 8250 gal.
Weight: 1020 lbs.
Dimensions: 122 x 27 in.
