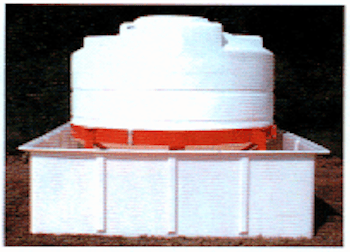

Poly Processing Containment Basins

Help prevent hazardous spills and leaks with Poly Processing containment basins. These basins are made from either HDPE or XLPE resins and are available in two shapes: cylindrical or rectangular. As with most Poly Processing products, these basins are also available with OR-1000 lining or the full-drain IMFO system.

Return to Containment Basins page

Product Info and Chemical Specifications

Cylindrical Basins

Part Number

Gallons

Top Diameter

Bottom Diameter

Height

Flange Width

1500570

570

6'-6"

6'-4"

2'-7"

2"

1500935

935

6'-7"

6'-3"

4'-0"

2"

1501500

1500

11'-9"

11'-6"

2'-0"

2"

Rectangular Basins

Part Number

Gallons

Length

Width

Height

Flange Width

5100080

80

3'-1"

2'-1"

2'-1"

2"

5300135

135

3'-5"

3'-5"

2'-2"

N/A

5300175

175

10'-5"

5'-0"

8"

3"

5100225

225

4'-10"

3'-2"

2'-1"

4"

5100320

320

5'-6"

3'-5"

2'-8"

3"

5100385

385

5'-6"

3'-7"

2'-10"

2"

5100440

440

5'-8"

4'-8"

2'-6"

2"

5100555

555

6'-6"

4'-10"

3'-0"

N/A

5100635

635

9'-2"

3'-1"

3'-2"

4"

5100700

700

8'-0"

6'-0"

2'-1"

3"

5100730

730

8'-6"

4'-10"

3'-0"

N/A

5101000

1000

12'-7"

7'-7"

2'-4"

N/A

5101150

1150

5'-9"

4'-9"

6'-2"

3"

5101500

1500

6'-3"

5'-3"

7'-2"

4"

5101850

1850

9'-11"

8'-11"

2'-11"

3"

Diameter does not include flange
